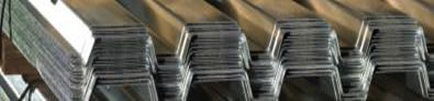

Steel Deck

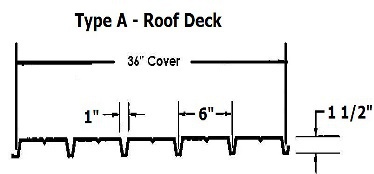

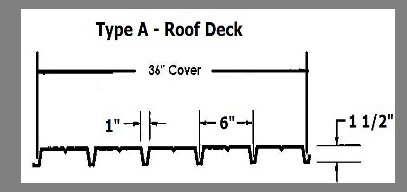

Type "A" deck is mainly used as
a retrofit to match an existing deck.
A Deck Narrow Rib

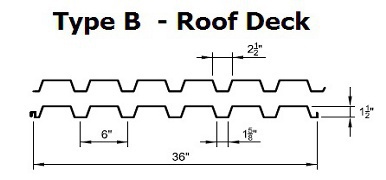

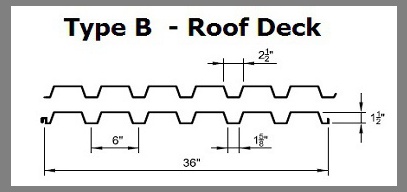

Type "B" deck is the deck of choice
for the majority of roofing applications.
It is the most commonly sold decking.
B Deck Wide Rib

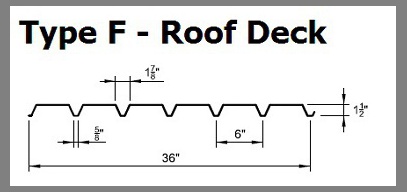

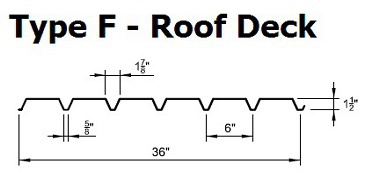

F Deck Intermediate Rib

Type "F" deck is typically used when 2"
or less of roof insulation is present to prevent insulation damage over the deck valleys.

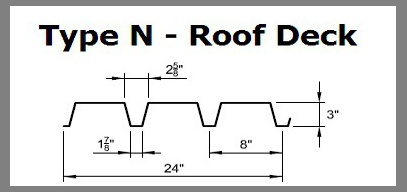

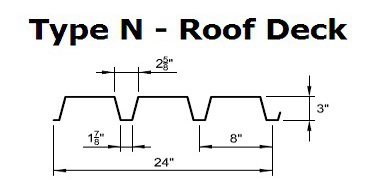

N Deck Long Span

Type "N" deck is used when the support
spacing exceeds the recommended spacing
for "B" type deck.

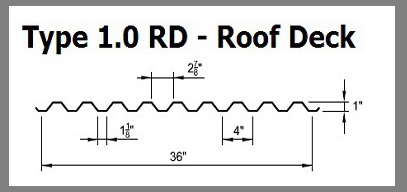

Roof Decks

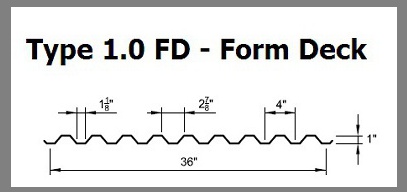

Form Deck
Composite Floor Deck
Cut to order! Just for your job!
P.O. Box 91, Oilville, VA 23129
Phone: 804-784-3541
Fax: 804-784-3543

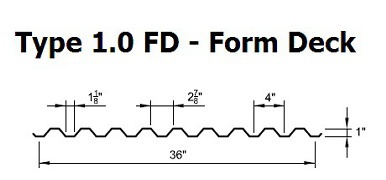

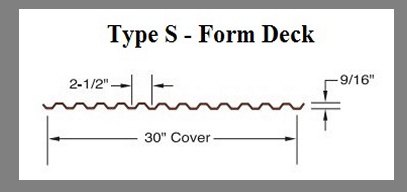

S Form Deck

Form deck is used when a non-composite
slab is required and the clear span
is short.

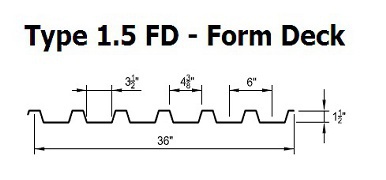

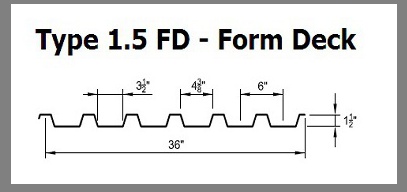

1.5 FD Form Deck

Type "B" inverted form deck is used when the
spans and loads exceed the capability
of standard and heavy duty form decks.

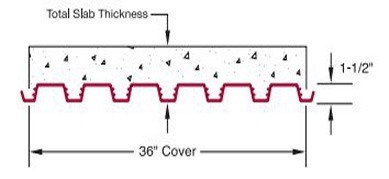

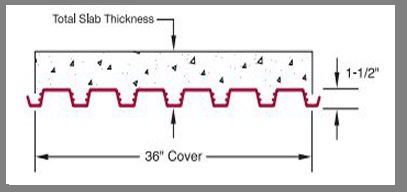

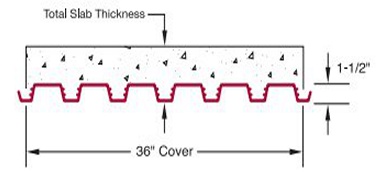

1.5 CD Composite Deck

1 1/2" Composite deck is used when the slab
and support to support distance are both
moderate in size.

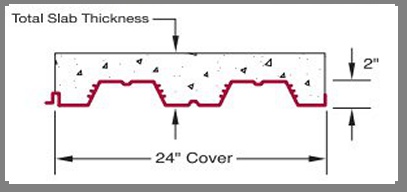

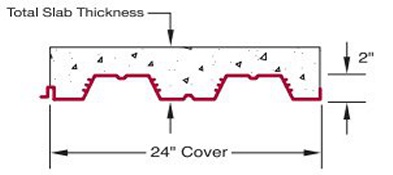

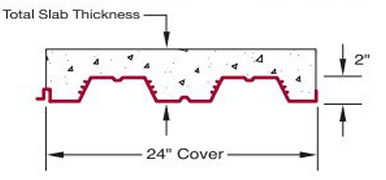

2.0 CD Composite Deck

2" Composite deck is used when spans and
loads exceed the capability of 1 1/2" composite
deck.

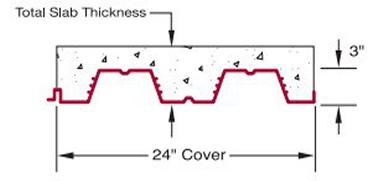

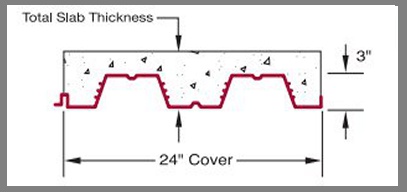

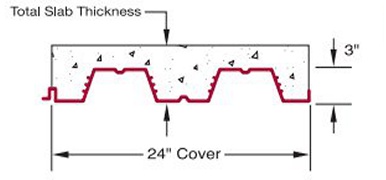

3.0 CD Composite Deck

3" Composite deck is used when the spans and
loads exceed the capabilities of 1 1/2" and 2"
composite deck.
Need Help? Call our expert sales staff for help with your purchase. 804-784-3541
We offer Steel joist and deck packages contact Estimating@johnrhouckcompany.net
2" Composite Deck
3" Composite Deck
1 1/2" Composite Deck
